Safe Protector_Customized Version(SP Logo)
Category:
Parameter
Product length, 2 meters, 12 meters, 15 meters, 30.5 meters, 20 meters, 25 meters, 50 meters, 60 meters, 61 meters, 100 meters, 200 meters Product color: black, yellow, red, blue, white, green, gray, silver gray, orange, orange, support color customization. Product packaging: open carton, woven bag, regular carton, support custom carton printing LOGO Support customized flame retardant products, has passed UL94/V0/V2 detection. Easy installation, beautiful installation, wear resistance will increase the service life of the pipe Product shape, inner diameter, thickness, width support custom.
Product Information

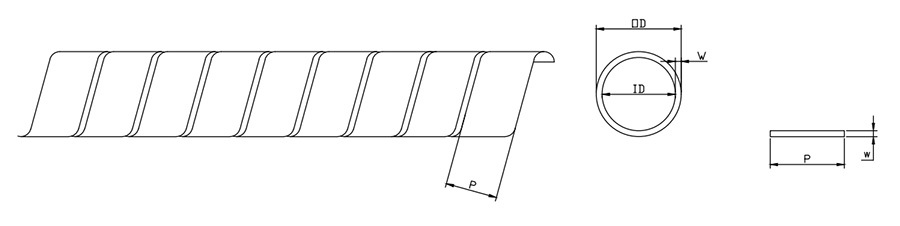

Electronic chart, ID/OD/P/W and other desired data E-mail, Whats, WeChat, sending
Spiral protective sleeve (LOGO type)
Low temperature resistance -50 ℃, high temperature 80 ℃, short time (high temperature 100 ℃)
Tensile properties
Test basis: GB/T1040.2-2022
Tensile modulus 1131(MPa)
Tensile strength 25.37(MPa)
Elongation at break 143(%)
Wear resistance test, mass loss, 0.0674g
Ultraviolet anti-aging, detection basis: GB/16422.3-2022
Lamp type: UVB-313: test time 200h
Irradiance W/(㎡.nm)(3100mm)/Light 0.67
Black temperature (60 ℃)
Exposure cycle (h)
Ultraviolet aging (no visible change in test results and appearance)
has passed the rohs test, in line with eu standards.
Low density 0.91g/com3 (floating in water)
Oil resistance, acid and alkali resistance.
Our company has passed the 9001 certification
Spiral protective sleeve (LOGO type) is a kind of spiral sheath made by hot winding and shaping extrusion process. It is a new product that replaces the traditional metal spring for hose protection.
• Easy installation: No complicated operations and tools are required.
• Good wear resistance: It can effectively reduce the wear of internal products caused by external friction.
• Anti-aging, strong corrosion resistance: can protect internal products in various environments.
• Enhanced performance: Enhance the anti-static and anti-ultraviolet properties of internal products such as hydraulic hoses, wires, cables, etc.
• Safety protection: protect internal products in harsh environments.
• Extended life: After installation, the service life of internal products can be extended.
• Beauty enhancement: make the hydraulic hose, wire, cable and other products more clean and beautiful.
The arc spiral protective sleeve has been widely used in excavators, loaders, road rollers, pavers, forklifts, cranes, dump trucks and other construction machinery and injection molding machine equipment, mainly installed in the external hydraulic hose, wires, cables and other products.
24 production lines of spiral protective sleeve equipment, 5 batching equipment and 3 cooling equipment
ROHS test
|
ROHS(ROHS Test Equipment) Sample name: spiral protective sleeve Sample number: 2403001531-2 Description: Black solid Test results: lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB)s), polybrominated diphenyl ethers (PBDEs), phthalates (such as dibutyl phthalate (DBP), butyl benzyl phthalate (BBP), di (2-ethylhexyl) phthalate (DEHP) and diisobutyl ortho-benzoate (DIBP))The test results comply with the limit requirements of Amendment Directive (EU)2015/863 to Annex 2 of EU ROHS Directive 2011/65/EU. Tested to meet testing standards * Detailed test data shall be subject to the company's test report |
 |
 |
Low temperature test
|
High and low temperature box (low temperature test equipment) Test items: low temperature test Test basis: GJB 150.4A-2009 Testing equipment: high and low temperature humidity and heat test chamber, model: ASR-50ET Testing conditions:-50 ℃, after 24h aging, fill the sample with customer-supplied filler, and freely drop the impact sample from 100mm with 300g heavy hammer under -50 ℃ environment. Test results:The sample has no crack or fracture after testing and meets the inspection standard. * Detailed test data shall be subject to the company's test report |
 |
 |
High temperature test
|
Oven (high temperature test equipment) Test items: high temperature test Test basis: GJB 150.3A-2009 Testing equipment: oven, model: FD56 Testing conditions: 100 ℃, after 24h aging, fill the sample with customer-supplied filler, and freely drop the impact sample from 100mm with a 300g heavy hammer at 100 ℃. Test results:The sample has no crack or fracture after testing and meets the inspection standard. * Detailed test data shall be subject to the company's test report |
 |
 |
Tensile performance test
|
Tensile machine (tensile performance testing equipment) Test items: tensile properties Test basis: GB/T1040.2-2022 Testing equipment: universal material testing machine, model: 34TM-30 Digital micrometer, model: 0-25mm Detection conditions: style specification: 1A clamp distance: 115mm Gage: 75mm Speed: Modulus stage 1 mm/min Other stages: 50 mm/min Test conclusion:Tensile modulus (MPa):1.13x103 Tensile strength (MPa):25.4 Elongation at break (%):1.4x102 Tested to comply with GB/T1040.2-2022 testing standards * Detailed test data shall be subject to the company's test report |
 |
 |
Wear test
|
Abrasion testing machine (abrasion test equipment) Test items: wear resistance test Test basis: GB/T 5478-2008 Testing equipment: wear resistance testing machine, model: GB-7012-T Electronic balance, model: ME204 Test condition: load: 1000g Revolutions: 1000r Grinding wheel type: H18 Speed: 60rpm Test results:Quality loss 0.0674g tested in line with testing standards * Detailed test data shall be subject to the company's test report |
 |
 |
Ultraviolet test
|
UV box (UV aging test equipment) Test items: UV aging Test basis: GB/T16422.3-2022 Testing equipment: UV aging test machine, model: QUV/Spray Test conditions: lamp type: UVB-313; Test time: 200h Irradiance W/(m2nm)(310nm) illumination 0.67 Blackboard temperature (℃) illumination 60 condensation 50 Exposure period (h) light 4 condensation 4 Test results:No visual change in appearance After testing, it meets the inspection standard * Detailed test data shall be subject to the company's test report |
 |
 |
Product low density test: low density 0.9g/com³ (floating in water)
Only pure raw materials (new materials can reach the data)
ISO9001 certification
Raw material warehouse
Finished product warehouse
Spiral protective sleeve (LOGO type) is widely used in excavators, pump trucks, loaders, road rollers, mining machines, drilling rigs, logging machines, coal mine supports, fuel dispensers, car washing machines, charging piles, and other engineering and agricultural and forestry machinery. It is mainly installed on the outside of hydraulic rubber hoses, oil pipes, cables and other products to protect them from bumping, abrasion, explosion and corrosion in various harsh environments, thus prolonging their service life.
Company cooperation unit
Zoomin, XCMG, Futian Reza, Lingong, exported to, Russia, Brazil, Spain, Singapore, Canada, and other countries.
Production strength
